Automatic Desert Flower Cologne Spray Filling Line Machine 50ml 100ml 200ml
Main character of spray filling
1.PLC control
2.No bottle, no filling
3.CE certificate+GMP standard
4.Full stainless steel machine
5.High precise filling
Performance Features
1. Good brand PLC control system and color touch screen,
2. Stainless steel piston pump quantitative filling,
3. Pneumatic adding cap and elevating screw capping,
4. Machine body is made of 304 stainless steel, which is full compliance with GMP requirements,
5. With accurate filling measurement, smooth screw capping and easy operation.
| Model | YB-P2 | YB-P4 | YB-P8 |
| Filing head number | 2 | 4 | 8 |
| Adding pump head | 1 | 1 | 2 |
| Capping head number | 1 | 1 | 2 |
| Filling volume | 20-200ml (can be customized) | 20-200ml (can be customized) | 20-200ml (can be customized) |
| Capacity | 10-35 bottles/min | 20-50 bottles/min | 80-100 bottles/min |
| Filling accuracy | ≤ ±1% | ≤ ±1% | ≤ ±1% |
| Pass rate | ≥ 98% | ≥ 98% | ≥ 98% |
| Power supply | 1 Ph. AC220V, 50/60Hz | 1 Ph. AC220V, 50/60Hz | 1 Ph. AC220V, 50/60Hz |
| Total power | 1.5 KW | 1.6KW | 1.8 KW |
| Net weight | 500kg | 550kg | 650kg |
| Overall dimension | 1800×1600×1500mm | 1800×1900×1500mm | 2400×1900×1500mm |
Warm Tips
1. We could produce different machines due to your capacity request.
2. If your filling volume is out of the range of machine, we could customize for you.
Detailed Images

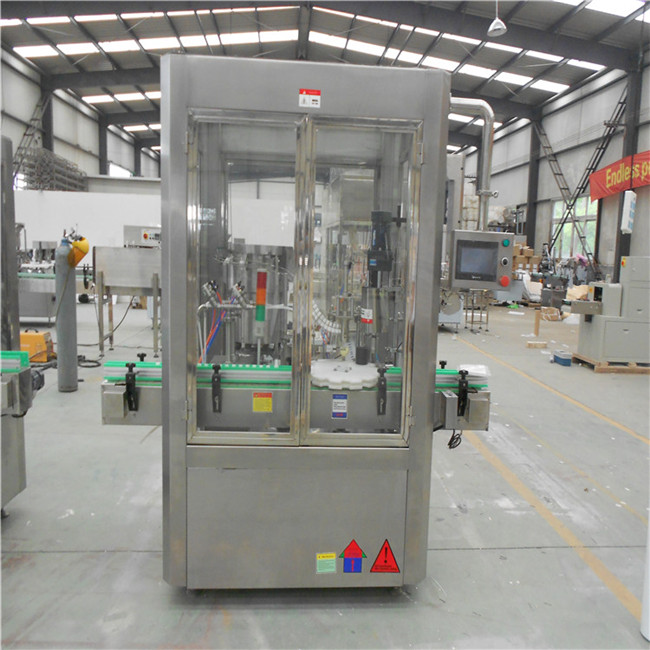

Spray Bottle Filling Machine (with customized cover)
Touch screen control, filling volume adjustable
Bottle rotary table (customized due to diffrent bottles)
Adding pump head
Screw capping head
Spray pump feeding vibration plate
FAQ
Q: Are you a factory or trading company?
A:BY Machinery is a factory who has rich experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 10 years, and now we have our own brands and own designed machines for sale!
Q: How long need to ship the machines after order?
A: All machines can be ready and shipped in 15 or 30 days after order!
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q: Why should you choose our packing and filling machine ?
A:We have been specialized in filling and packing machine for more then ten years,nd until now have exported mahcines to more than 30 countries
Q: Can you provide after-sale service ?
A:Yes ,sure.We have engineers available to service overseas .
Q: Can i visit your factory and send team for learning and inspect ?
A: Yes,sure.We will do our best to teaching you how to use the machine.
Q: What is our advantages?
A: 1.Competitive price
2. Excellent technical support
3.Best service
